data
- Year of construction
- 1992
- number of manuals
- 1
- manuals
- C-g'''
- system
- mechanical
- stop action mechanism
- mechanical
- Register
- 4
- Principle-base
- 4
- height
- 270 cm
- width
- 132 cm
- depth
- 60 cm
-
disposition
Bourdon 8‘
Spitzflöte 4‘
Nasard 2 2/3‘ (Bass/Diskant)
Doublette 2‘ (Bass/Diskant)
Tremulant
-
remarks

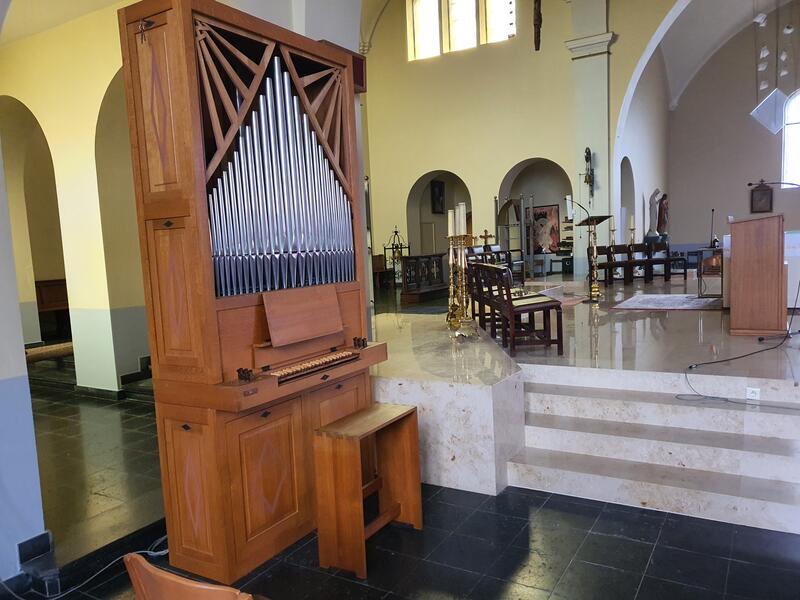

The case was handcrafted with tongue and groove joints, tenons and platband fillings.
The entire instrument was made from beautiful solid oak, lightly stained and waxed.
The rosewood stop knobs can be operated from the side.
The lower keys of the keyboard are also covered with rosewood.
The upper keys are made of boxwood.
Pitch: 440 Hz. Unequal temperament at 18° (Valotti).
The covered and half-covered pipes are all soldered and tuned via the side bars.
The pipes that are led away receive their wind via lead conduits.
The wind chest is made of oak and the chancery slats are made of cedar.
The foundation board is made of high-quality plywood. The pipe stocks are made of oak and cedar and are glued in three parts.
Sealing rings are installed above and below the loops.
The wind supply consists of a small, three-part wedge bellows. The fan and tremulant are mounted in a solid, insulated box below the bellows. The
wind supply is therefore particularly quiet.
The connecting channel to the wind chest is also made of solid oak. The suspended action is operated by long-armed oak keys to achieve a pleasant and gentle touch. The lower two octaves run over a small wave board with square brass waves.
The remaining keys are attached directly to the valve. The instrument is easily accessible for maintenance, tuning and care.
It is the ideal organ for a small chapel or a high-ceilinged, spacious living room.
The voicing is very intimate and poetic.
Upon sale, the organ will be set up by us. The voicing and tuning will be adjusted to suit the
room.
The instrument is sold with a 5-year warranty.
The price is net.
