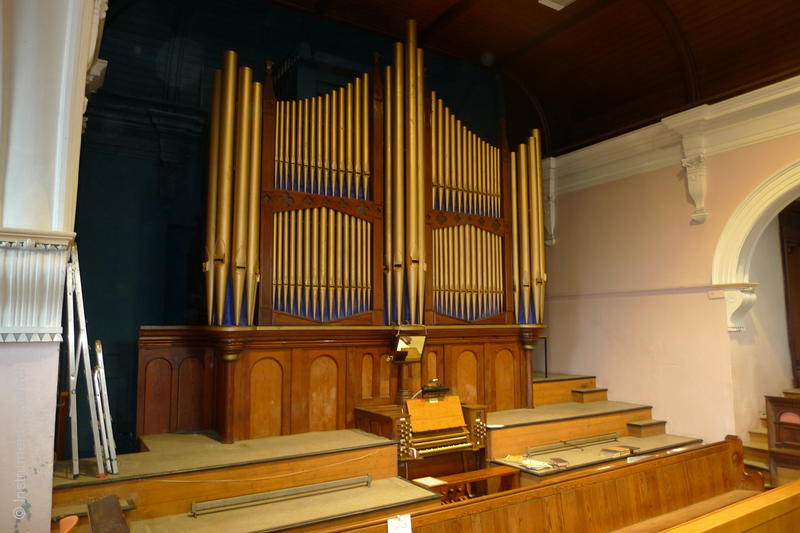

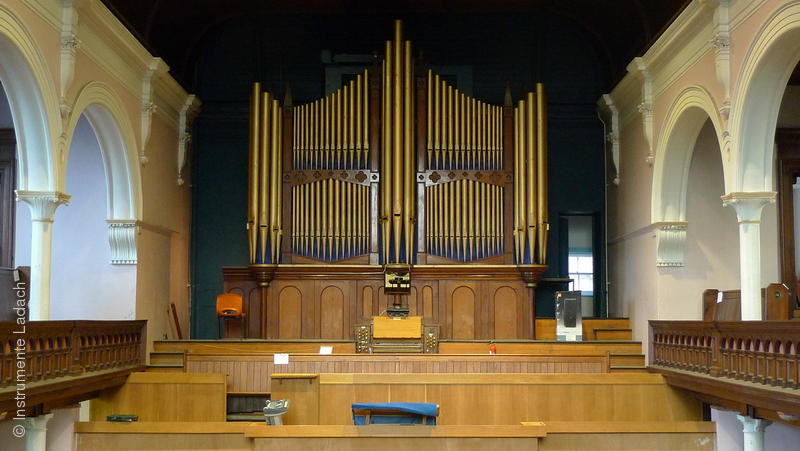

Ingram 23/II+P
Year of construction
1891
number of manuals
2
manuals
C-a'''
pedal
C-f'
system
mechanical
stop action mechanism
mechanical
Principle-base
16
height
680 cm
width
540 cm
depth
440 cm
  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

  • Ingram 23/II+P

Click on small pictures to enlarge

disposition

Manual 1 - Great:

Contra Gamba 16'

Open Diapason 8'

Violin Diapason 8'

Dulciana 8'

Hohl Flute 8'

Principal 4'

Harmonic Flute 4'

Piccolo 2'

Clarionet 8'

Trumpet 8'



Manual 2 - Swell

Bourdon 16'

Open Diapason 8'

Lieblich Gedact 8'

Salcional 8'

Voix Celestes 8'

Gemshorn 4'

Mixture III-II

Oboe 8'

Horn 8'

Vox Humana 8'

Tremulant



Pedal:

Grand Open Diapason 16'

Bourdon 16'

Violoncello 8'

couplers

Swell to Great

Swell to Pedal

Great to Pedal

Swell Super Octave

remarks

Please ask for more details.
